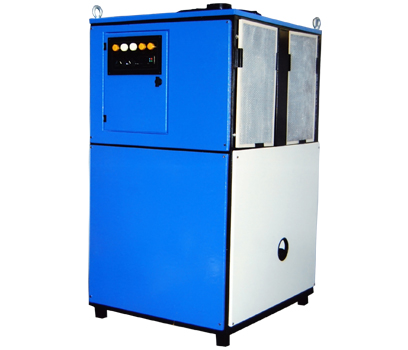

Hydraulic Oil Chillers

Today's high end machines incorporate numerous hydraulic operations, for which require special and specific oil with a wide range of viscosity. During operation continuous addition of heat reduces the viscosity of hydraulic oil which indirectly changes the properties of oils and results into undesirable functioning of machine. Therefore it becomes essential to maintain specified temperature limits for this oil during operation. Therefore the function of Hydraulic oil chiller is to maintain temperature at required range..

Mill Oil Coolers

Mill Oil Coolers
Oil Coolers

Oil Coolers
Oil Chillers

Oil Chillers


REQUEST A QUOTE


Our hydraulic oil chiller comes with salient features such as
  • Strong and sturdy body
  • Machine capable of withstanding high ambient temperatures
  • Constant temperature output
  • Digital temperature controller display
  • Powder coated parts to avoid rusting
  • PHE / Shell & Tube type/Immersed Coil
  • Safety Controls

Applications Hydraulic coolant System of machines are
  • Deep Hole Drilling
  • Spindle Cooling
  • Milling
  • Grinding
  • Honing
  • Turning
  • Broaching
  • Capacity Range: 0.5 TR Onwards


Cooling Capacity (TR)
Model
Evaporator Type
W
D
H
Refrigerant
Supply

1

OILCOL3KP

PHE

600

700

1080

R22

1Ph, 230VAC, 50 Hz

OILCOL3KST

Shell & Tube

1200

700

1515

R22

1Ph, 230VAC, 50 Hz

1.5

OILCOL45KP

PHE

700

800

1270

R22

3Ph, 440VAC, 50 Hz

OILCOL45KST

Shell & Tube

1200

700

1515

R22

3Ph, 440VAC, 50 Hz

2

OILCOL6KP

PHE

1000

700

1445

R22

3Ph, 440VAC, 50 Hz

OILCOL6KST

Shell & Tube

1200

700

1515

R22

3Ph, 440VAC, 50 Hz

3

OILCOL9KP

PHE

1100

700

1515

R22

3Ph, 440VAC, 50 Hz

OILCOL9KST

Shell & Tube

1500

700

1515

R22

3Ph, 440VAC, 50 Hz

4

OILCOL12KP

PHE

1200

700

1515

R22

3Ph, 440VAC, 50 Hz

OILCOL12KST

Shell & Tube

1500

700

1515

R22

3Ph, 440VAC, 50 Hz

5

OILCOL15KP

PHE

1200

800

1505

R22

3Ph, 440VAC, 50 Hz

OILCOL15KST

Shell & Tube

1800

900

1515

R22

3Ph, 440VAC, 50 Hz
